Description

Manufacturer Part # : K1056DL

Market Description

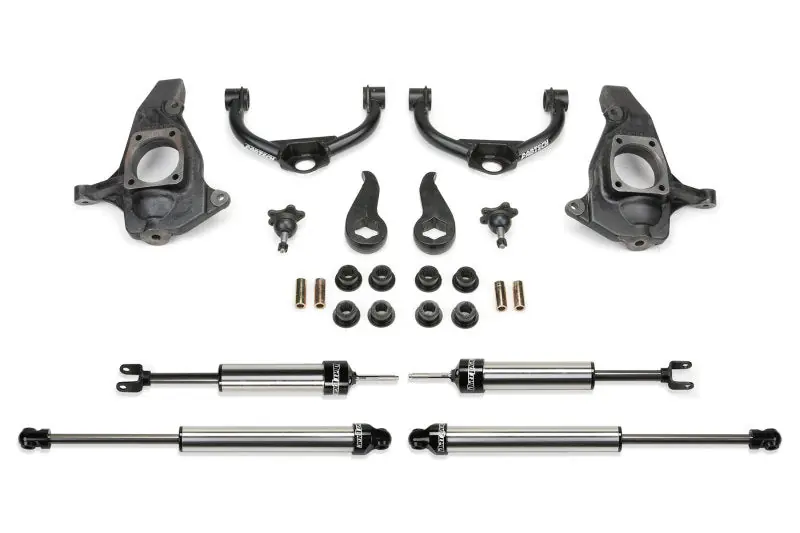

• Our 4 Ultimate System provides less lift than our 6 RTS(TM) system but still allows use of 33 or 35 tall tires with cutting for street and offroad use. We have developed this system utilizing replacement upper control arms constructed of 1.50 OD .120 thick wall DOM tubing that attaches to heavy duty Fabtech ductile iron steering knuckles. The factory torsion bars remain in the stock position and use new forged adjusting keys to provide the proper amount of lift. There is no loss of ground clearance with this system as the stock lower control arms, torsion bars and front differential do not need to be relocated. This 4 Ultimate System will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. For those customers that require a factory nose down appearance an optional 1 rear block kit is available (2500HD Part # FTS21110) (3500HD Part # FTS21111).
• Our 4in Ultimate System provides less lift than our 6in RTS system but still allows use of 33in or 35in tall tires with cutting for street and offroad use. We have developed this system utilizing replacement upper control arms constructed of 1.50in OD .120in thick wall DOM tubing that attaches to heavy duty Fabtech ductile iron steering knuckles. The factory torsion bars remain in the stock position and use new forged adjusting keys to provide the proper amount of lift.Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.

Associated Comments

TIRE SIZE – 33/12.50R18 WHEEL – 18X9 W/5 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 33/12.50R20 WHEEL – 20X9 W/5 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 35/13.50R18 WHEEL – 18X9 W/5 3/4″ BS W/FENDERWELL CUTTING; TIRE SIZE – 35/13.50R20 WHEEL – 20X9 W/5 3/4″ BS W/FENDERWELL CUTTING; 17. DOES NOT FIT STANDARD CAB.; 114. WILL NOT ALLOW USE OF 17? WHEELS.; 124. REQUIRES CUTTING OF FENDERWELL SHEETMETAL FOR USE WITH 35? TIRES

Product Description – Short

• Fabtech 11-19 GM C/K2500HD/3500HD 4in Ultimate System w/DL Shocks
• 3.5″ ULTIMATE SYS W/
• LftKt-Suspw/Shock

Product Description – Long

• 3.5″ ULTIMATE SYS W/DLSS SHKS 2011-19 GM C/K2500HD/3500HD
• 4in. ULTIMATE SYS W/DLSS SHKS 2011-15 GM C/K2500HD/3500HD

Product Description – Extended

4in. ULTIMATE SYS W/DLSS SHKS 2011-18 GM C/K2500HD/3500HD

AAIA Part Type Description

Suspension Lift Kit
